SLED with Drivers

A superluminescent diode (SLED or SLD) is an edge-emitting semiconductor light source based on superluminescence.
It combines the high power and brightness of laser diodes with the low coherence of conventional light-emitting diodes.

DenseLight has a comprehensive portfolio of SLEDs. It covers wavelength from 1250 nm to 1700 nm, power from 0.2mW to 50mW and spectral width from 25nm to 100nm.

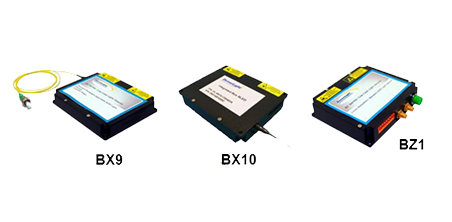

The DL-BX9/BX10 series consists of a built-in current driver, a temperature controller and a DenseLight standard 14 pin butterfly package DL-CSxxxxA.

Similarly, the DL-BZ1 series consists of a temperature controller, a DenseLight standard 14-pin butterfly package CL-CSxxxxA and a built-in current driver capable for CW driving, digital or analog modulation input.



Select the SLED module in place of CSXXXXA from the following:

  • DL-BX9-CSXXXXA
  • DL-BX10-CSXXXXA
  • DL-BZ1-CSXXXXA










Characteristics BP BX9 BX10 BZ1
CW
Digital modulation
Analog modulation
High PER
Digital control ✔*
Programmable interface
Tunable output power
Output on / off switch
Over temperature protection and
internal PCD temperature monitor
*output power only







Packaging Options

DenseLight’s SLEDs come in different packaging options to fit any application needs:

  • Single mode fiber and polarization maintaining fiber available (SMF & PMF)
  • Optional monitoring photodiode
  • Optional optical connectors

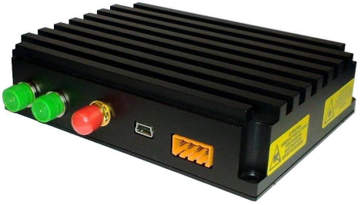

Broadband ILM boxes – BP series:

Programmable Superluminescent LED Sources

Features

•Wavelength from 1200 to 1700 nm
•Optical output power up to 50mW
•Wide 3dB spectral bandwidth of up to 80nm
•USB interface for controllable output power and internal modulation frequency
•CW operation base on ACC or APC operating mode
•Internal or external direct-modulation (digital inputs)
•Operating temperature from -20 to 70°C
•Telcordia certification

Software for Programmable Superluminescent LED Source – BP1



Broadband ILM boxes – BZ1 series:

Consist of a built-in current driver, a temperature controller and a DenseLight standard 14 pin butterfly package DL-CSxxxxA.
Features Analog intensity modulation up to 20MHz and Pulse (or digital modulation) up to 200MHz functions.

Features

  • Optical power of 3 to 45mW
  • 3dB spectral width of 20 to 85nm
  • Wavelength availability 1260 to 1670nm
  • Fiber pigtail output or FC receptacle
  • Integrated optical isolator
  • Single +5V power supply (optional power adapter)
  • Built-in current driver and temperature controller
  • Operating temperature 0 to 65 °C (extended range available)
  • Over temperature protection and internal PCB temperature monitor
  • Analog intensity modulation up to 20MHz (transconductance amplifier performance)
  • Pulse or digital modulation up to 200MHz











Broadband ILM boxes – BX9, BX10 series:

Features

  • Optical power of 3 to 50mW
  • 3dB spectral width of 20 to 85nm
  • Wavelength availability 1260 to 1670nm
  • Tunable optical power
  • Fiber pigtail output with FC/APC connector
  • Integrated optical isolator (optional)
  • Single +5V power supply (optional power adapter)
  • Built-in current driver and temperature controller
  • Highly stable power output and active power control
  • High wall-plug efficiency
  • Compact size
  • Telcordia qualified SLED (GR-468-CORE)





Application:

  • Structural Health Monitoring (SHM) – Sensing in gas & oil
  • Test & Measurement
  • Communications
    Affordable gigabit bandwidth fiber-link to homes and business (FTTX), test & measurement for telecom networks
  • Medical applications
    OCT (biopsies-less medical cell imaging, diagnostic imaging), point of use/ handhelds/ non-invasive diagnosis (blood analysis)
  • Energy, oil and gas
    Sensing in gas & oil production, telemetry in electricity distribution
  • Industrial controls
    In-line production process monitoring, 3D metrology and surface metrology, semiconductor fabrication (solar cells), chemical and gas sensing – safety, emission control, security
  • Environmental sensing
    Physical (temp, pressure, strain, vibrations), structural and civil engineering, smart structures, intelligent distributed sensing
  • Defense & security
    Perimeter defense, navigation and guidance – inertia sensing (gyroscope), infrared illumination for surveillance and speckle-free military imaging



Telcordia Quality Assured

DenseLight’s SLEDs successfully passed Telcordia’s GR-468-CORE “Reliability Assurance Requirements for Optoelectronics Devices Used in Telecommunications Equipment”

Passed 5000 hours accelerated-ageing and ripple-aging tests
